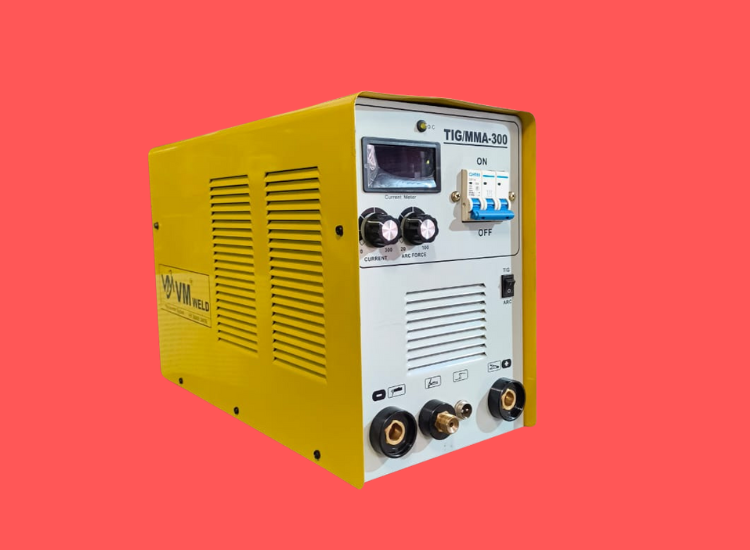

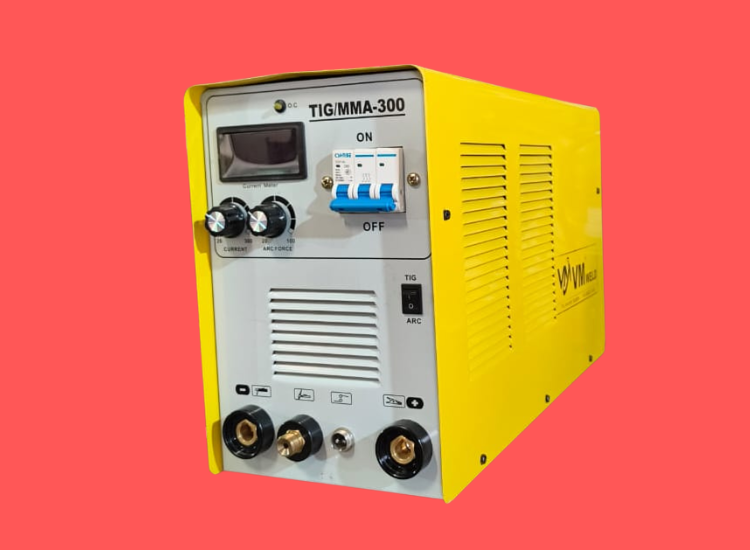

The TIG 300 AMP Welding Machine is a professional-grade solution for precision welding of stainless steel, mild steel, copper, and other metals. Built with advanced IGBT inverter technology, it ensures smooth arc stability, deep weld penetration, and energy efficiency. Its dual functionality (TIG + MMA) makes it suitable for workshops, fabrication units, and industrial projects.
Key Features:
Process: TIG (GTAW) & MMA (Stick Welding)
Technology: IGBT inverter-based digital control system
Current Control: Precise adjustment with digital display
Functions: 2T/4T modes, Hot Start, Arc Force, Anti-Stick
Cooling: Heavy-duty forced air cooling system
Design: Rugged yet portable for industrial and on-site applications
| Technical Specification | Model VMW – TIG 300 |
|---|---|
| Input Voltage | 415V ±15% (Three Phase, 50/60Hz) |
| Rated Input Power Capacity | 10 – 12 kVA |
| Welding Current Range | 20 – 300 AMP (Adjustable) |
| Rated Duty Cycle | 60% @ 300A / 100% @ 240A |
| No-Load Voltage (OCV) | 65 – 75V |
| Welding Process | TIG (Argon Gas Shielded) / MMA (Stick Welding) |
| Efficiency | ≥ 85% |
| Power Factor | 0.93 |
| Cooling System | Forced Air |
| Protection Class | IP23 |
| Electrode Diameter (MMA) | 1.6mm – 5.0mm |
| Tungsten Electrode Size (TIG) | 1.6mm – 4.0mm |
| Weight | ~18 – 22 Kg |
| Dimensions (L x W x H) | Approx. 490mm x 210mm x 380mm |
| Applications | Structural welding, fabrication shops, pipelines, automotive repair, heavy-duty precision welding |
We specialize in providing high-quality welding and cutting equipment tailored to meet industrial demands.
